What Does “Center‑to‑Center” Mean? How to Measure Cabinet Pulls Correctly

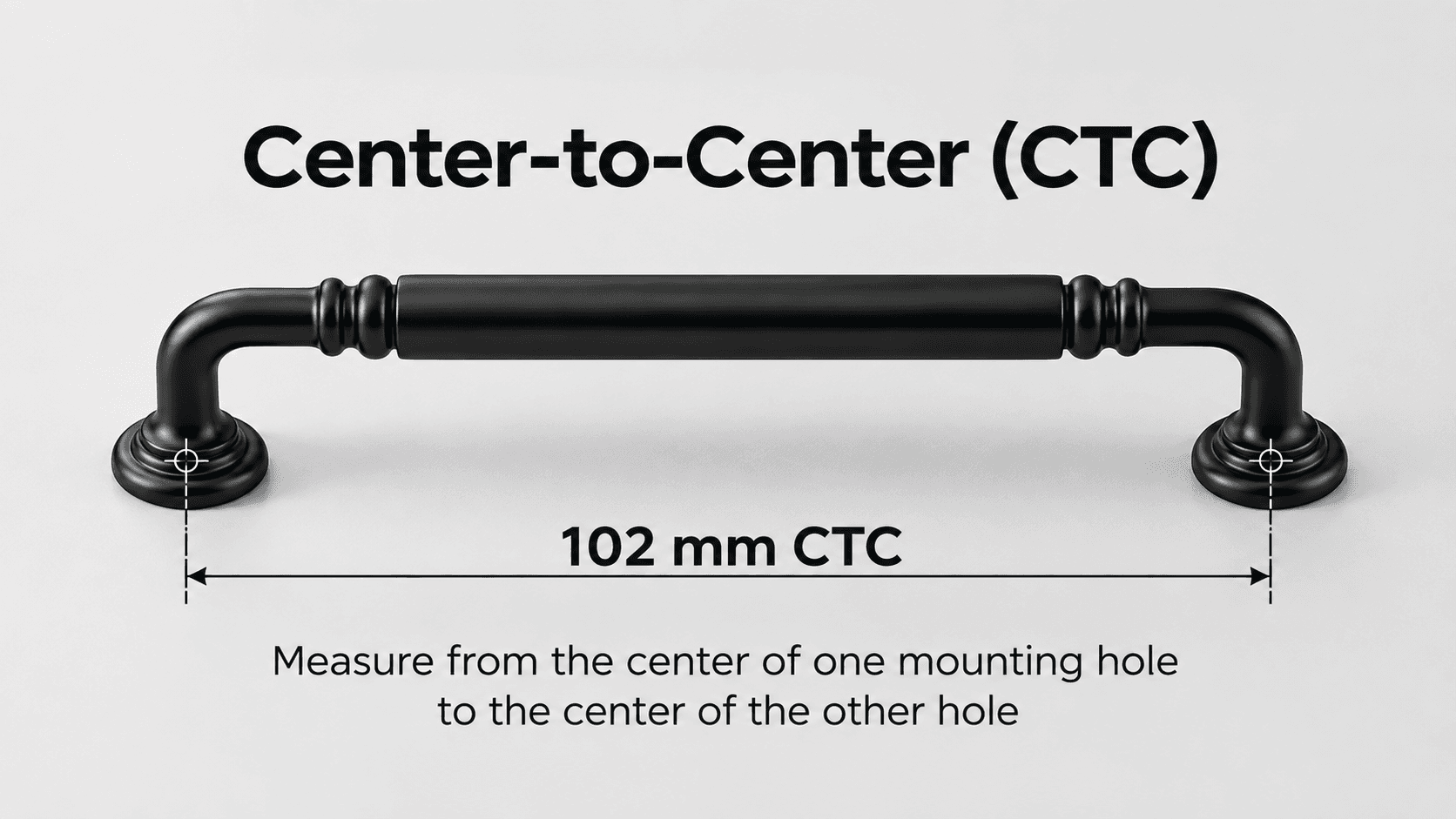

What center‑to‑center means

Center‑to‑center, abbreviated CTC, is the distance from the center of one mounting hole to the center of the other. It is the controlling fit measurement for most two‑hole cabinet pulls. CTC is different from overall length, projection, and the width of the grip. When replacing a pull, matching the existing CTC lets you reuse the same holes. If the measurement does not match, the replacement normally requires new holes or a compatible solution that covers the old marks.

Tools and preparation

Use a ruler or caliper with millimeter markings, a pencil, and a note sheet. Remove the existing pull so the hole openings are visible. Work from the front of the cabinet when possible and keep the measuring tool flat against the surface. If the holes are worn or enlarged, estimate the center of each opening rather than measuring the outside edges. Record the result in millimeters and take a clear photo for reference.

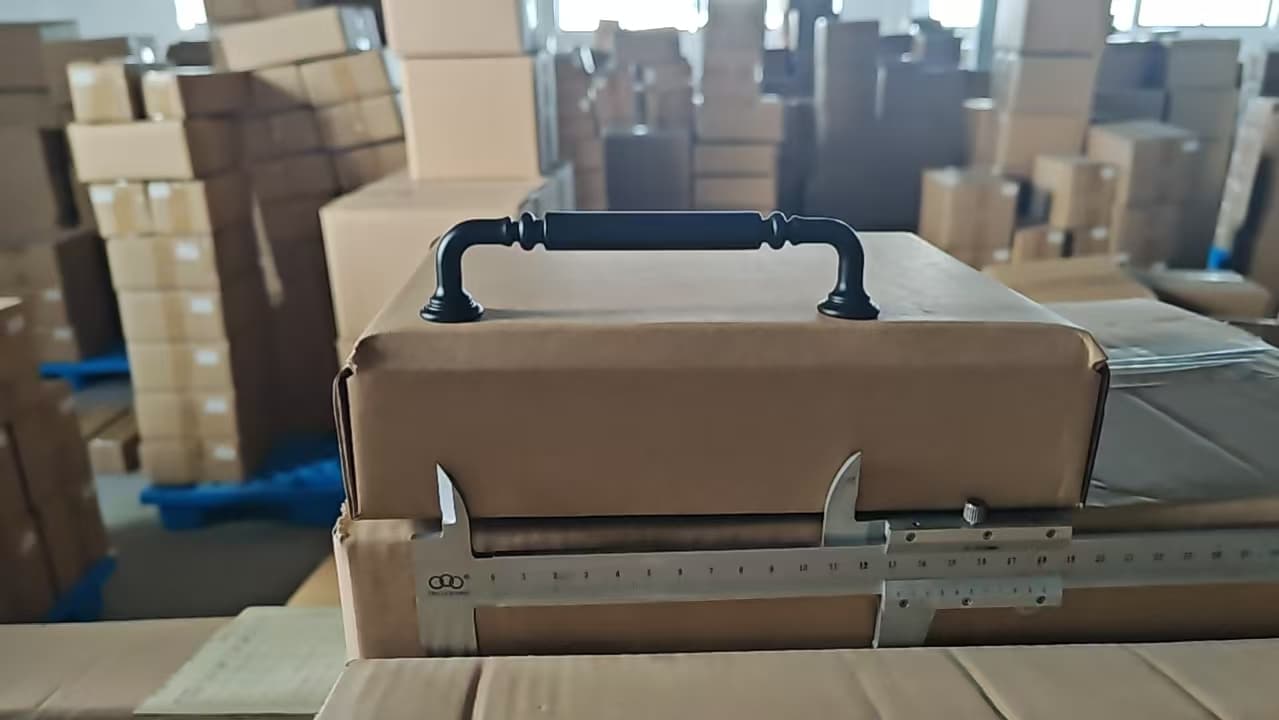

How to measure existing holes

Place the zero mark at the center of the first hole. Read the measurement at the center of the second hole, not at its nearest or farthest edge. Repeat the measurement to reduce error. If you use a caliper, measure from the same relative edge of both holes and then confirm the result from center‑to‑center. Compare the measurement with the millimeter CTC listed for the selected product variant. The product page, not a rounded inch description, controls fit. For further guidance, you can measure cabinet pull CTC on our dedicated guide page.

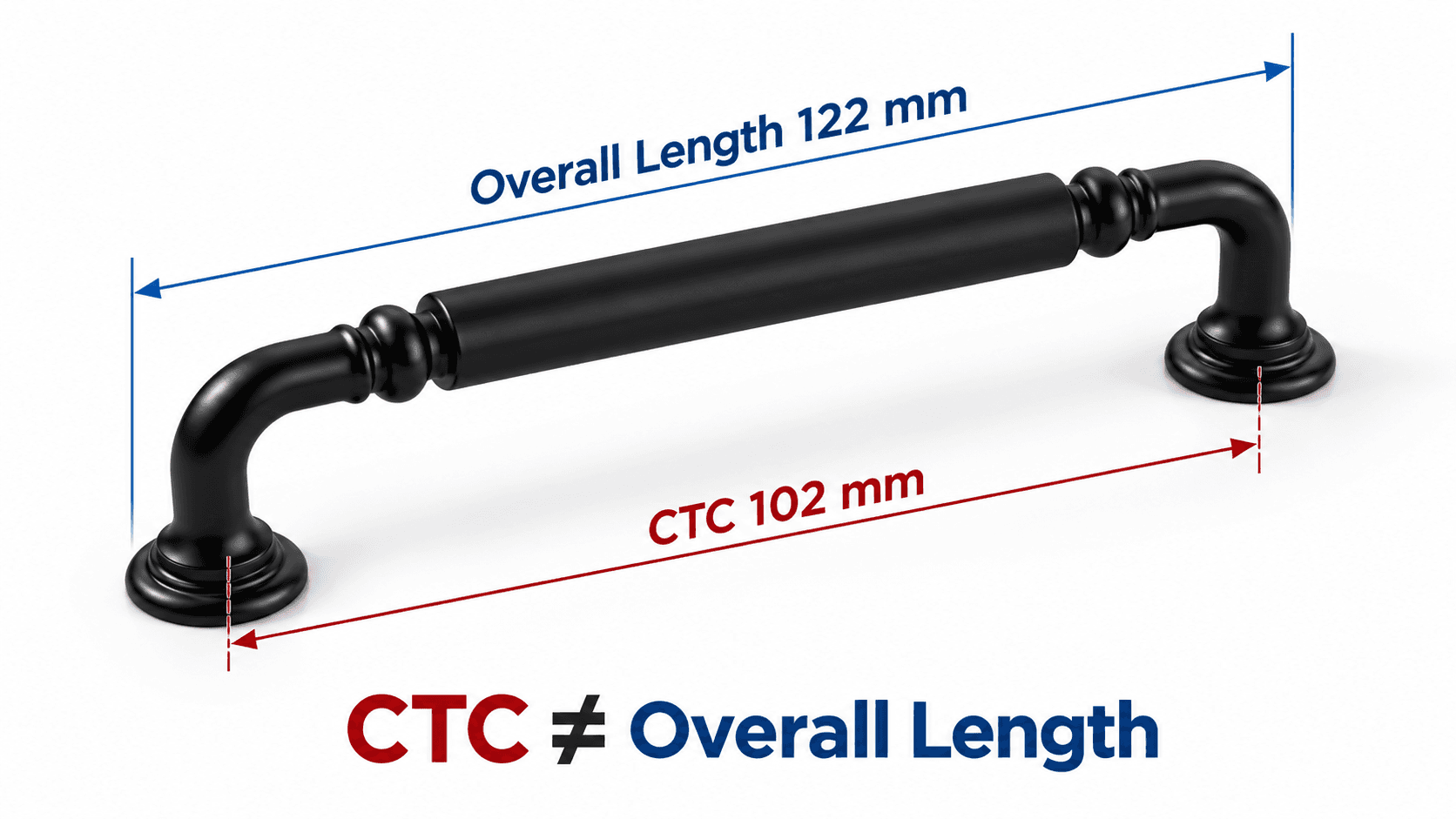

CTC versus overall length

Overall length describes the full end‑to‑end dimension of the pull. CTC describes only the spacing between the mounting holes. Two pulls can share the same CTC and still have different overall lengths, projections, or visual weights. That is why a photo or total length cannot confirm replacement fit. Use CTC for the hole pattern, then use overall dimensions to judge appearance, grip, and clearance.

Common reference sizes

KHTUMEWARE’s current measuring guide uses approximately 3 in / 76 mm, 5 in / 128 mm, and 6‑1/4 in / 160 mm as familiar examples. These are reference points, not a promise that every design is offered in every size. Always choose the exact variant shown on the product page and verify its listed millimeter CTC before ordering. If your measurement falls between common values, measure again and ask for confirmation rather than rounding.

What if the holes do not match?

If the new pull does not match the existing CTC, stop before drilling. You can select a pull with the correct CTC, explore compatible cabinet backplates that safely cover old‑hole marks, or plan a careful re‑drilling and repair process. Compatibility depends on the cabinet material, old‑hole position, backplate dimensions, and selected hardware. Test‑fit the parts and consult an experienced installer when the cabinet construction or drilling location is uncertain.

Measurement record

Create one line for each cabinet group: room, door or drawer location, number of pieces, existing hole count, measured CTC in millimeters, desired finish, and product link. Keep photos beside the record. This simple measurement sheet prevents a mix of nominal inch labels and exact millimeter dimensions. Review the sheet once more before the order is placed.

Final check

Correct measurement is the fastest way to avoid a poor fit. Measure the hole centers, record the result in millimeters, separate CTC from overall length, and compare the number with the exact selected variant. When any detail is unclear, send KHTUMEWARE the product link, measurement, and cabinet photo for confirmation before installation.

FAQ

Can I make the decision from online photos alone?

No. Product photos are useful for comparing shape and general finish direction, but screens, lighting, cabinet color, and viewing angle can change appearance. Confirm the exact selected product page, compare listed dimensions, and use a physical sample for a large order or any room where finish coordination is critical.

What should I record before ordering?

Record the room, cabinet location, existing hole count, millimeter CTC or relevant product dimensions, preferred finish, quantity, selected variant, and live product URL. Add one front‑view photo and any clearance concern. This record lets the product team check the actual application instead of guessing from a product name.

When should I ask KHTUMEWARE for confirmation?

Ask before ordering when the mounting, finish match, size, screw requirement, panel thickness, included components, product relationship, or application is not explicit on the live page. Send the exact links and measurements. Do not rely on a similar item, an old screenshot, or an unsupported assumption.

Before You Order

Reopen every linked page on the day of purchase. Confirm the exact finish, dimensions, pack quantity, stock status, price, included components, and current policy information shown for the selected variant. If an article statement conflicts with a live product page, the live product page must be reviewed by the product owner before the article or order is approved.

Practical Room Review

Review the decision in the actual room, not only on a product screen. Look at several cabinet fronts together, test normal hand positions, and check daylight and evening lighting. Keep the approved sample, product link, selected variant, and measurement record together. This short review helps the final hardware plan stay consistent when more than one person is ordering, installing, or approving the project.

Next Step

Measure first, then compare the exact millimeter CTC on the selected product page. Browse KHTUMEWARE cabinet pulls by size, or contact us with a photo and measurements when the fit is uncertain.
